Cycle Data

The Cycle Data tool is a powerful feature for rapid iteration and asset swapping. It allows you to replace an object’s underlying Object Data (like its mesh or curve geometry) with another data-block of the same type available in your Blender file.

Think of it as quickly trying on different versions of an asset without ever moving the object itself. The object’s location, rotation, scale, and even its modifiers are all preserved; only its core data is swapped.

How It Works

When you click Next, Prev, or Random, the operator performs the following steps for each selected object:

  1. It identifies the object’s type (e.g., Mesh, Curve, Text).

  2. It finds all other data-blocks of that same type currently in your .blend file.

  3. For curve-based types, it intelligently pre-filters the list to only include compatible data (e.g., a Text object will only cycle with other data-blocks that are also text).

  4. It sorts the valid data-blocks alphabetically by name.

  5. The list is then narrowed down further based on the text in the Filter field.

  6. Finally, it replaces the object’s current data with the next, previous, or a random choice from this final list.

The Next/Prev cycle will automatically wrap around. For example, clicking Next when on the last data-block in the list will cycle back to the first one.

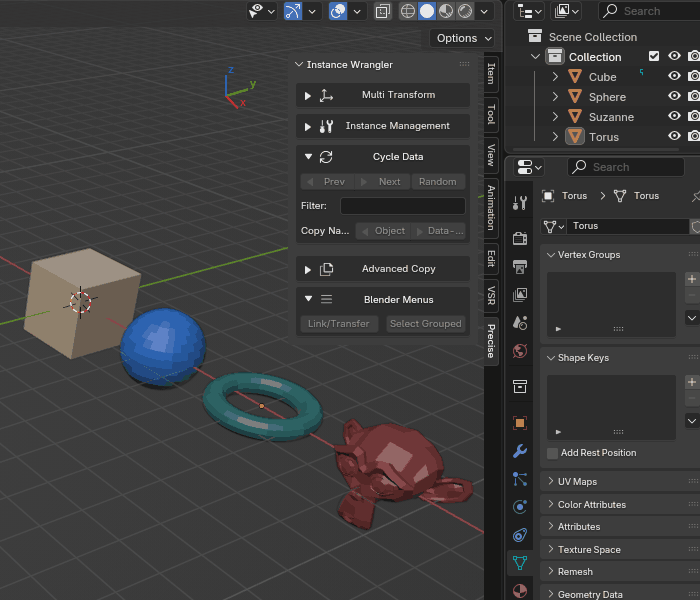

../_images/cycledata.gif

Cycling through object data on one or more objects.

How to Use

The workflow is designed for experimentation:

  1. Select one or more objects you wish to change.

  2. Use the Filter field to narrow your choices (optional).

  3. Click the Next, Prev, or Random buttons to change the data.

You can select multiple objects at once, even of different types. Each object will cycle independently within its own category.

Advanced Controls: Filtering and Randomizing

Filter Textbox

You can type a partial name into this field to narrow down the list of data-blocks that the operator will cycle through. The filter is not case-sensitive and will find any data-block whose name contains your text. A field containing only spaces is treated as empty.

Example: If you have data-blocks named ``Rock_Small``, ``Rock_Large``, and ``Pebble``, typing ``rock`` into the filter will limit the cycle to only the first two.

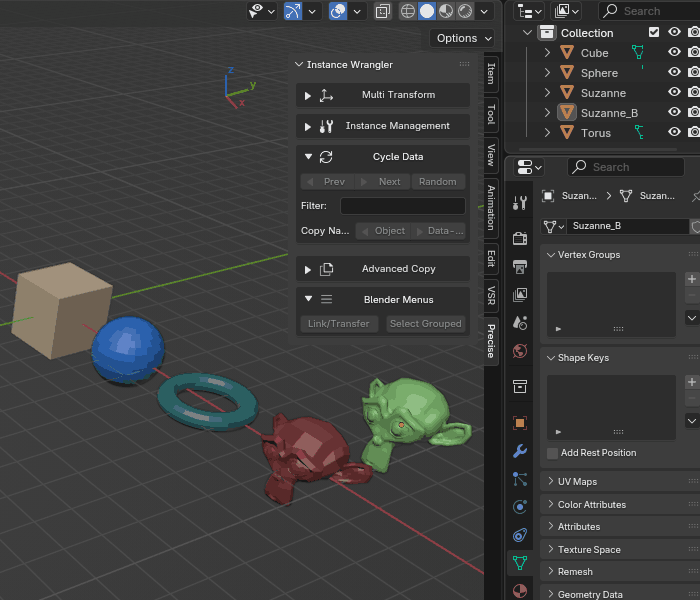

../_images/cycledata_filter.gif

Using a filter to limit the range of cycled objects.

Random Button

This button assigns a random data-block from the available candidates (respecting the current filter) to each selected object. It is designed to not pick the same data-block an object is already using, ensuring a change happens with each click (if other options are available). This is excellent for creating natural-looking variation across a large number of selected instances.

Example Workflows

Auditioning Assets

This tool is invaluable for tasks like set dressing. If you have a Tree_Placeholder object, you can select it and click Next repeatedly to cycle through all available tree models (Tree_Oak, Tree_Pine, etc.) to see which one fits best in your scene.

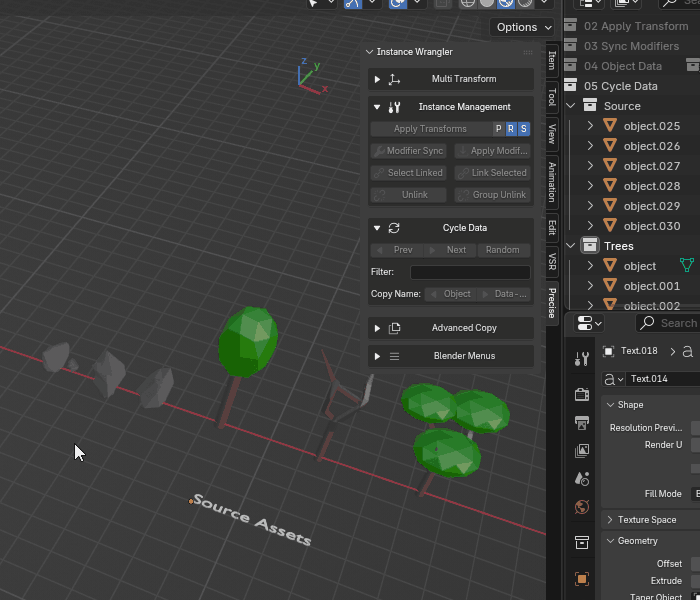

../_images/cycledata_staging.gif

Auditioning trees and rocks and using the randomize and filter functionality.

Swapping Levels of Detail (LODs)

This tool is also ideal for managing LODs. If your assets are named alphabetically (e.g., MyAsset_LOD0, MyAsset_LOD1), you can select all _LOD0 instances and click Next to switch them all to _LOD1 instantly. You can also use the Filter field: typing LOD2 and clicking Next will jump all selected objects directly to their _LOD2 version.
